Radial Motorized 12/24 Frame Honey Extractor - 74-12/24-RG

Vendor
Healing Bees Natural Skincare
Regular price
$2,480.00
Sale price
$2,480.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Transport crate additional $200

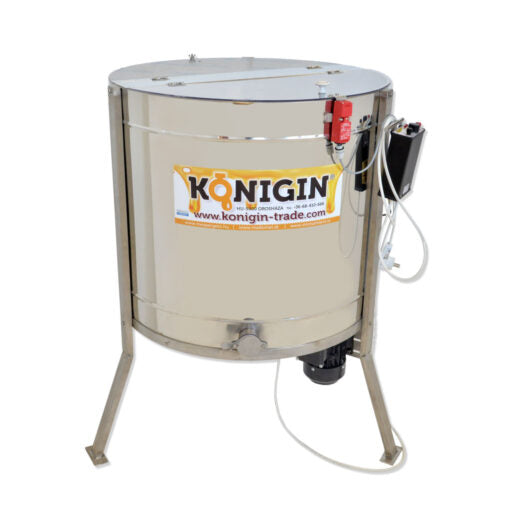

Built to German engineering standards, Konigin extractors set a new standard in excellence, reliability and ease of use.

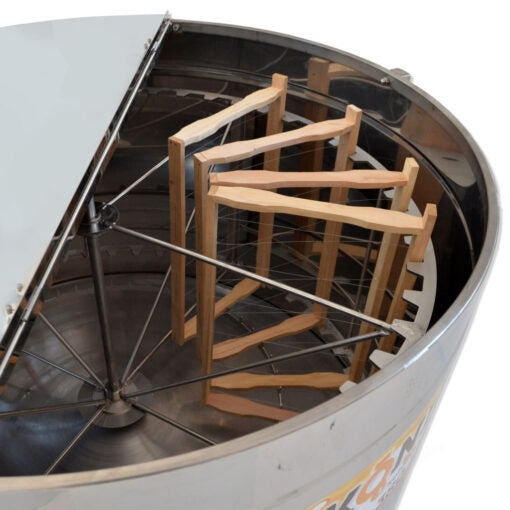

  • Radial extractor: both sides of the frames are extracted simultaneously
  • Takes 12 Deep or 24 Medium or 24 Shallow frames, or combination of
  • Motor and belt drive positioned on bottom

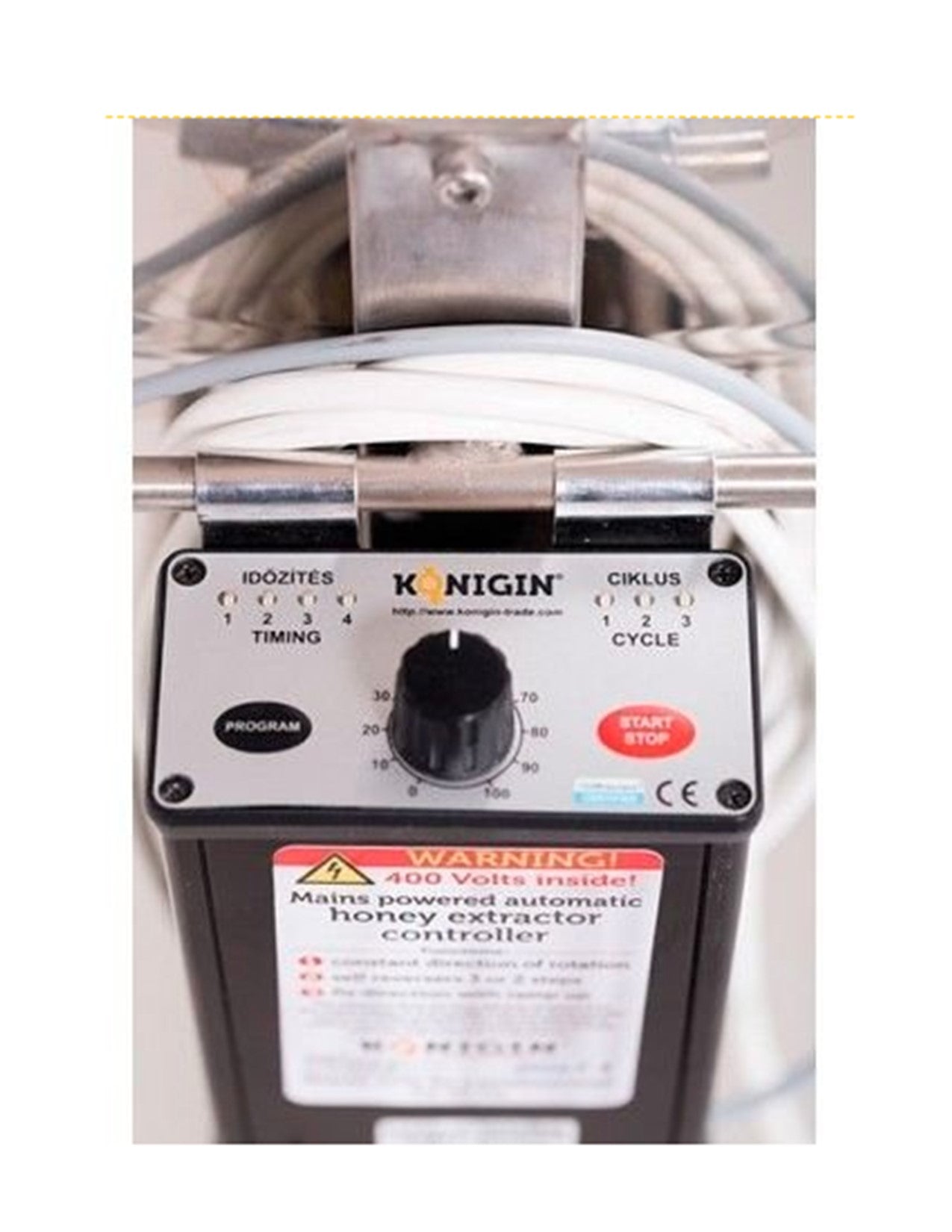

  • Automated, semi-automated or manual control of extraction time and speed.

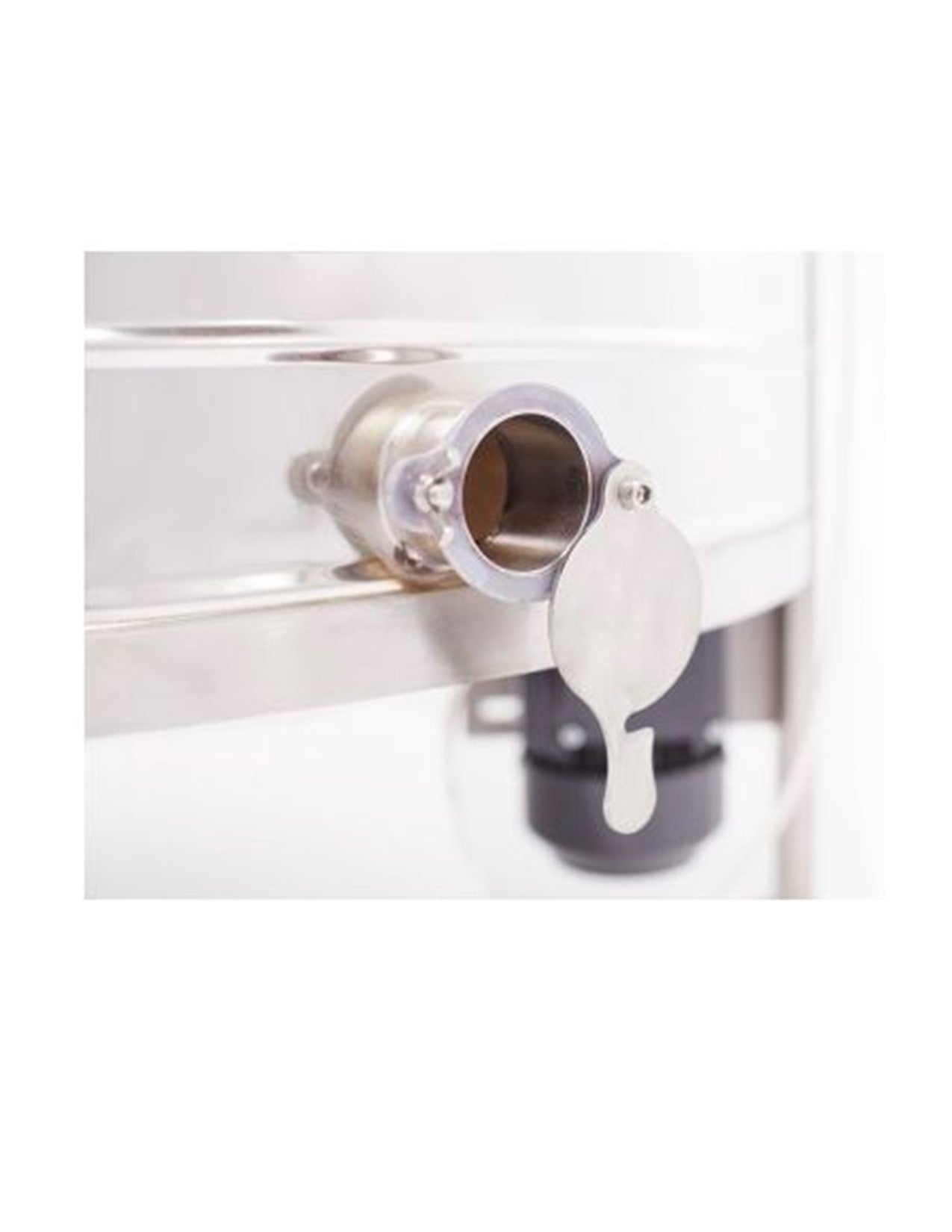

  • Welded stainless steel honey gate
  • Stainless Steel legs are removable
  • Conical bottom
  • Manufacturing meets German standards
  • TUV Rheinland Certified - certifies the safety standard compliance and qualifications of products, management systems, manufacturing processes, and personnel. TUV Rheinland is globally recognized certification body accredited by  Standards Council of Canada (SCC).
  • 2 (two) Year Warranty against defects in workmanship and material under normal use and regular maintenance.
Material Stainless Steel AISI 304
Frame Length 19"  Langstroth
Frame Height Deep - 9 1/8", Medium - 6 1/4", Shallow - 5 3/8"
Number of Frames 12 deep or 24 medium or 24 shallow, or combination of
Barrell Diameter 29 1/2"
Honey Gate Height 14"
Rotation 100-250 rpm
Drive 230V AC or optional 12V DC electric motor, belt drive
Motor Power 250W
Weight 35kg
Height 39 1/2"
